hose yarn SS wire winding machine are accessory devices to the automatic braiding machine,wire winding machine is a device which wind wire and yarn to the bobbin evenly and orderly.
yarn winding machine consists of 2 parts: pay-off shaft & winding head, standalone or combined.
hose yarn SS wire winding machine 1 head winding machine, 2 head winding machine, 4 head winding machine.
Name :
Hose braiding machineCountry of origin :
ChinaPayment terms :
T/T,L/C, D/P, Western Union, Paypal, Money GramLead time :
30 daysHorn gear :
114mmBraided hose ID :
16-58mmCarrier numbers :
8-96Bobbin size :
56x22x170mmCarrier speed(PRM) :
20-55 RPMBobbin capacity :
130cm³-360cm³Power :
1.5-3.0 KWWire materials :
Stainless steel wire ,textile, glass fiber,nylonApplications :
Sanitary hose, cable ,car and motor hose, high pressure rubber hose field.Company type :
Braiding machine manufacturer leader 30 yearshose yarn SS wire winding machine manufacturers:
hose yarn SS wire winding machine are accessory devices to the automatic braiding machine,wire winding machine is a device which wind wire and yarn to the bobbin evenly and orderly.
yarn winding machine consists of 2 parts: pay-off shaft & winding head, standalone or combined.
hose yarn SS wire winding machine 1 head winding machine, 2 head winding machine, 4 head winding machine.

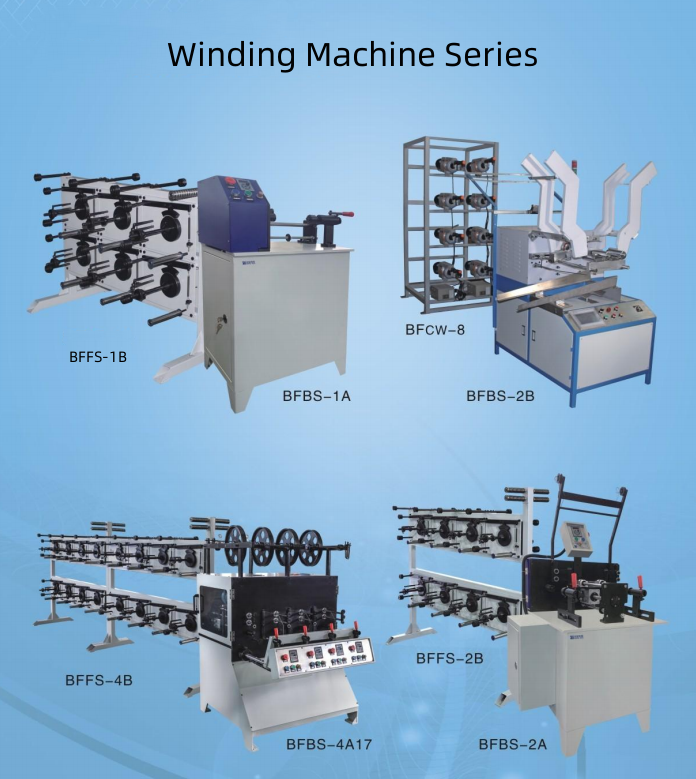

Type |
Axis RPM |
Motor power |
Voltage |
Moving pitch |
Bobbin size |
Bobbin Qty |
Pay off Spool No |
Pay off Spool size |

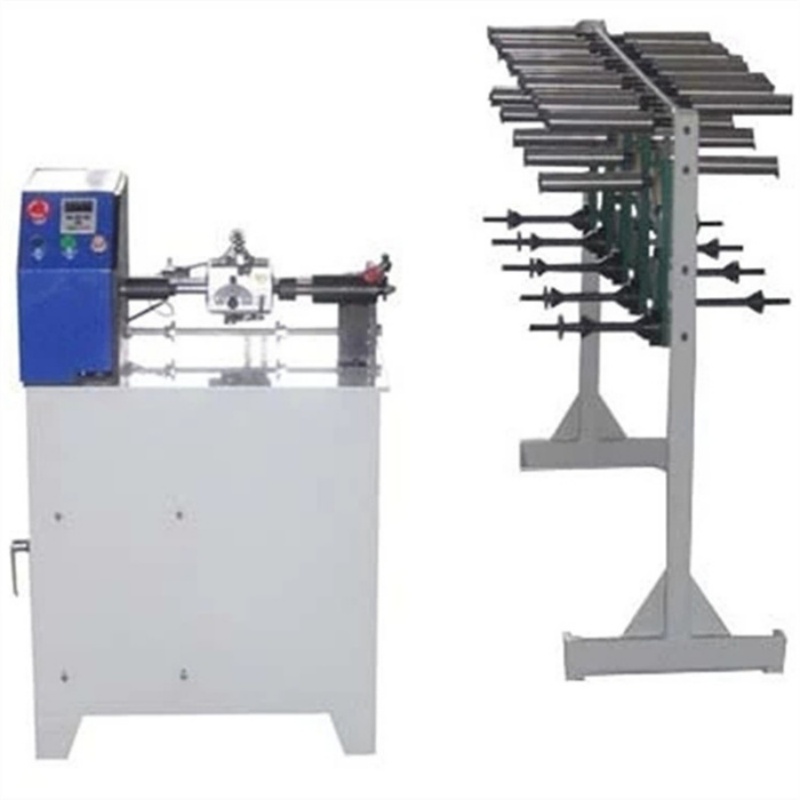

| BFBS-1A | 1400rpm (Frequency conversion） |
0.55KWi(2 Phase)220v | 220V/50Hz | 0.05-5mm ( Traversing drive) |
D≤100mm H≤280 mm （Customized ) |
1 | ≤9 | D≤200mm H≤280 mm （Customized ) |
| BFBS-1A30 | 0.75KW(2 Phase)220V | 22oV/50Hz | 1 | ≤9 | ||||
| BFBS-2A | 0.75KW(2 Phase)220V | 220V/50Hz | 2 | ≤18 | ||||
| BFBS-2B | 0.75KW | 380V/220V/5OHz | 2 | Customized | ||||
| BFBS-4A | 1.5KW(3 Phase)38Ov | 380V/220V/50Hz | 4 | ≤36 | ||||

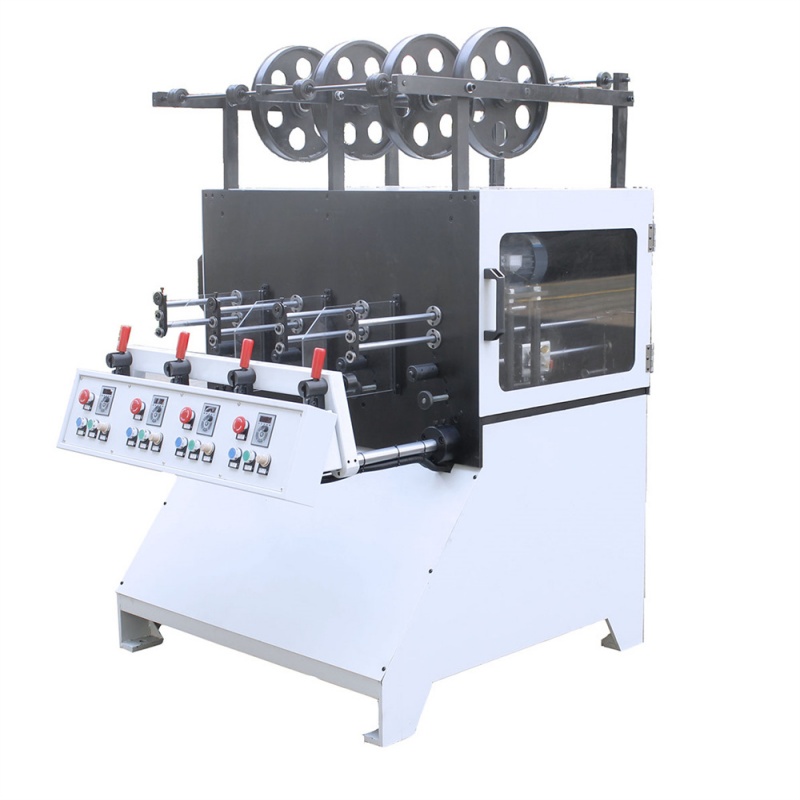

| BFBS-4A17 | 0.55KW*4/(2 Phase)220V | 220V/50Hz | 4 | ≤36 | ||||
| BFBS-4C | 2.2KW | 220V/50Hz | 4 | ≤36 |
Type |
Pay off Spool No |
Pay off Spool sizo |
Pay off materlal steel wire, cotton, nylon |
| BFFS-1A | 9 | 250*200cm | Steel wire, cotton thread, nylon thread |
| BFFS-2A | 18 | 250*200cm | Steel wire, cotton thread, nylon thread |
| BFFS-1B | 12 | 250*200cm | Steel wire, cotton thread, nylon thread |
| BFFS-1B290 | 12 | 250*290cm | Steel wire, cotton thread, nylon thread |
| BFFS-1BTX | 2 | 250*200cm | carbon fibre |
| BFFS-2B | 16 | 250*200cm | Steel wire, cotton thread, nylon thread |
| BFFS-1N | 10 | 25o*200cm | cotton thread, nylon thread |
| BFFS-2N | 20 | 250*200cm | cotton thread, nylon thread |
| BFFS12-255C | 12 | 280*115cm | Steel wire |
| BFFS14-255C | 14 | 280*115cm | Steel wire |
| BFFS-PE | 16 | 250*200cm | cotton thread, nylon thread |

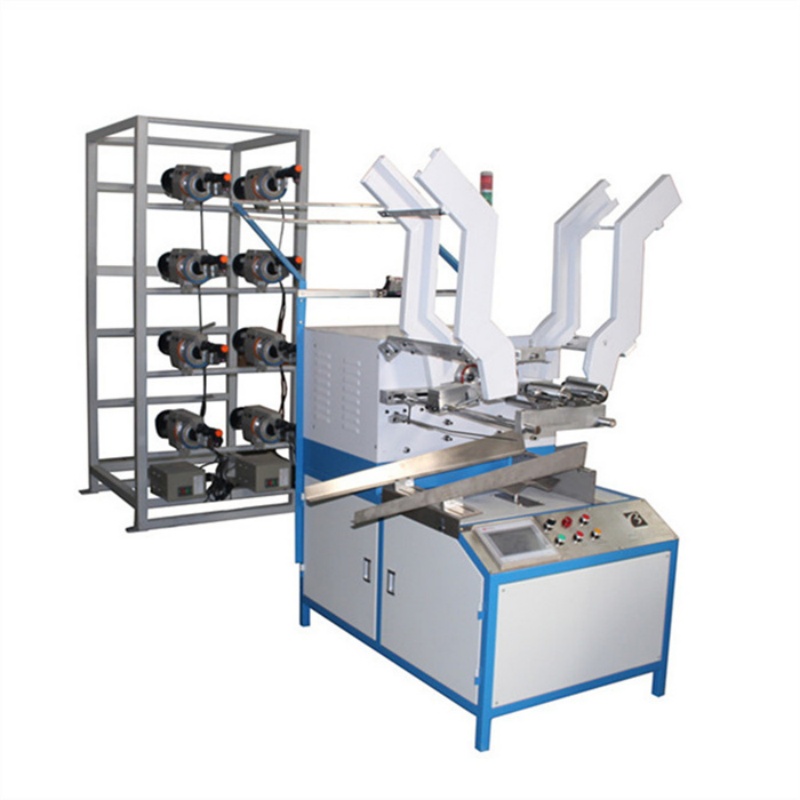

| BFCW-8 | 8 | 250*200cm | Steel wire, cotton thread, nylon thread |
